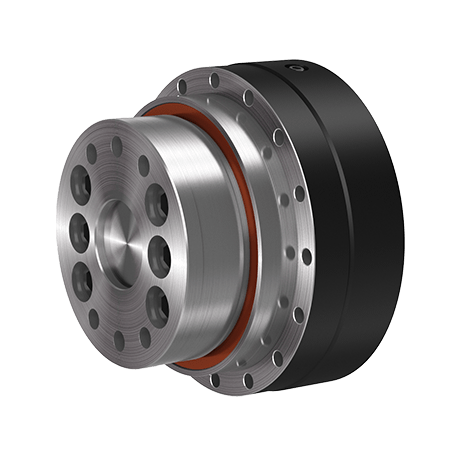

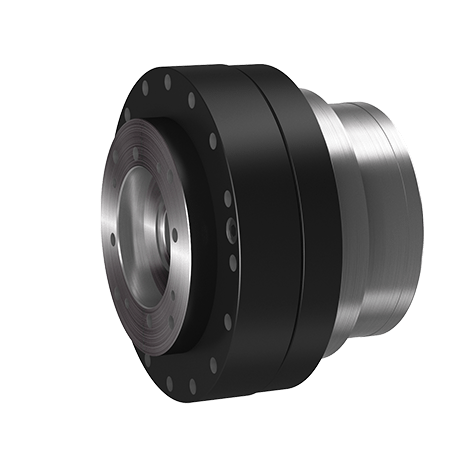

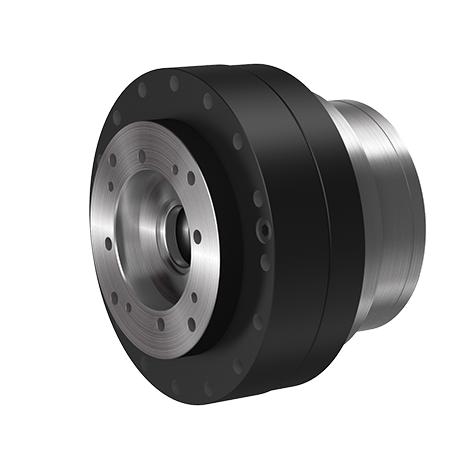

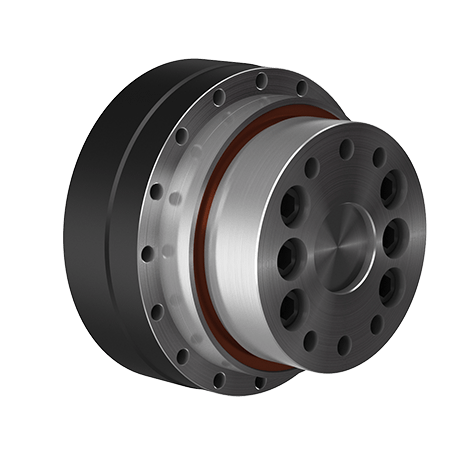

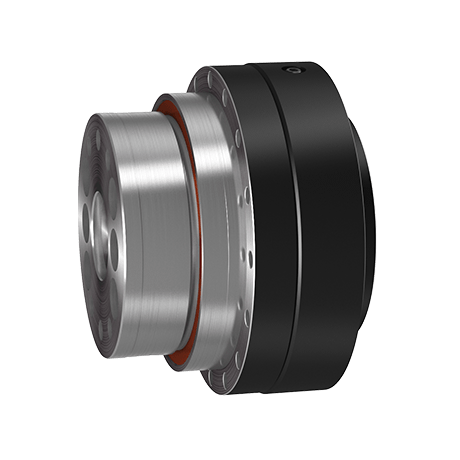

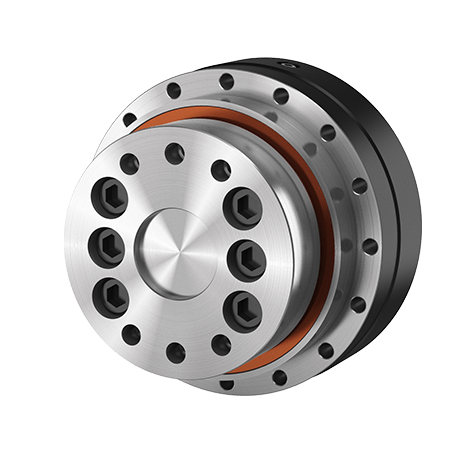

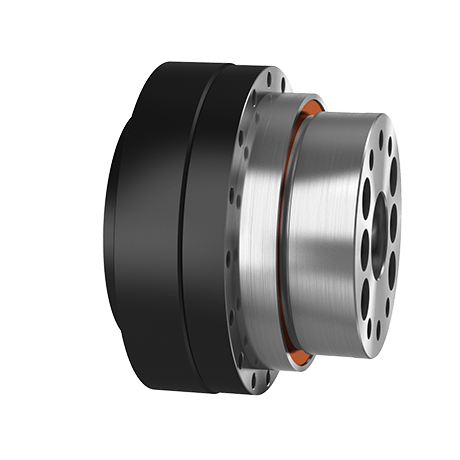

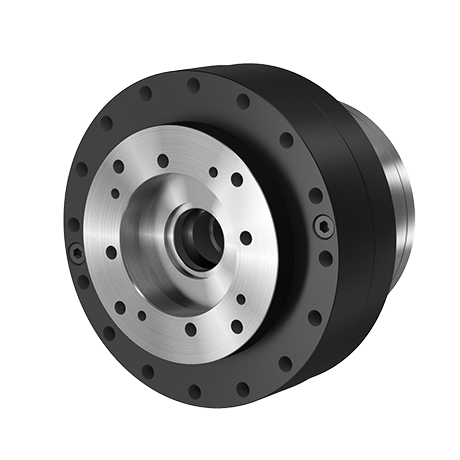

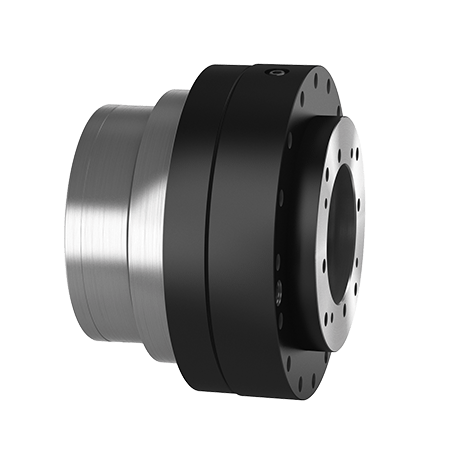

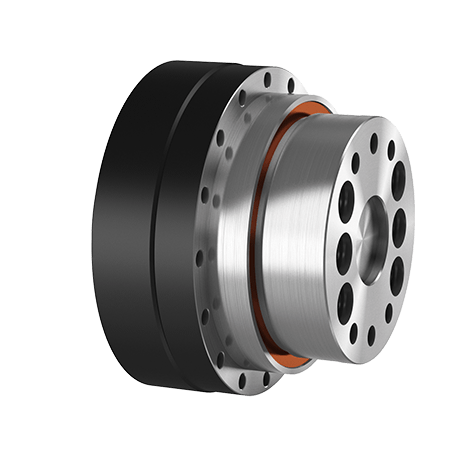

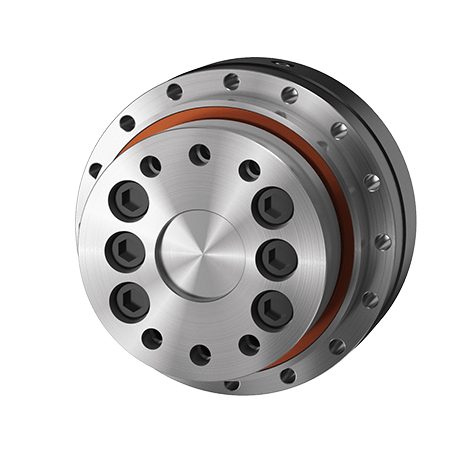

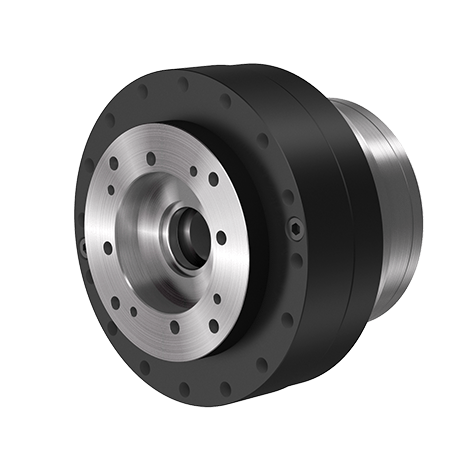

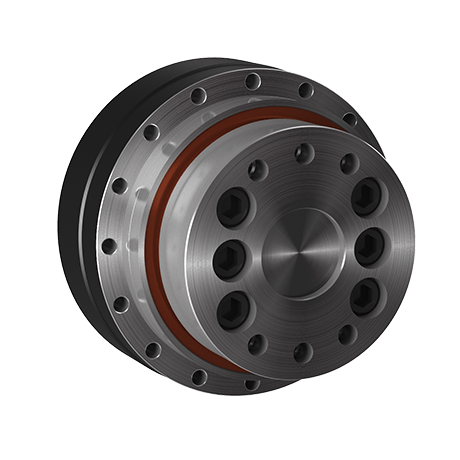

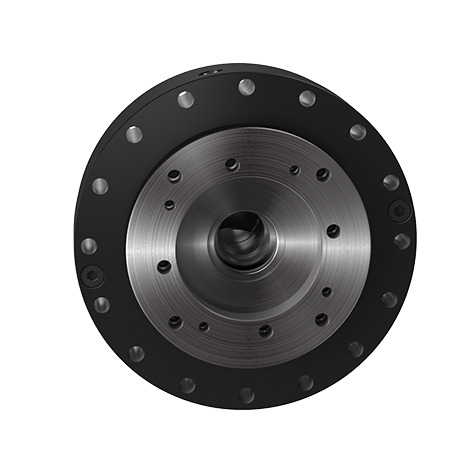

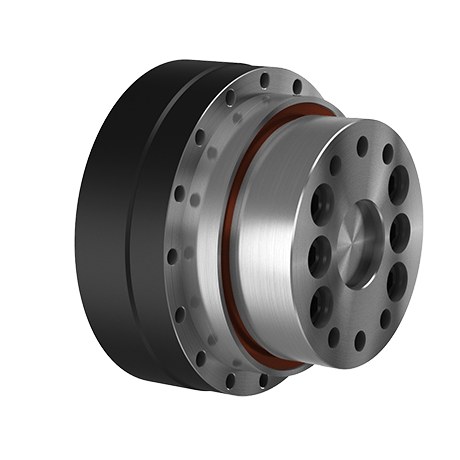

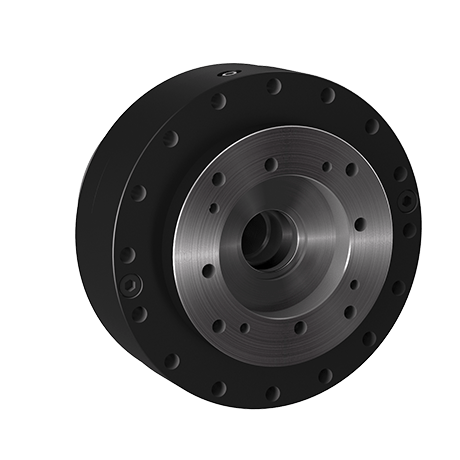

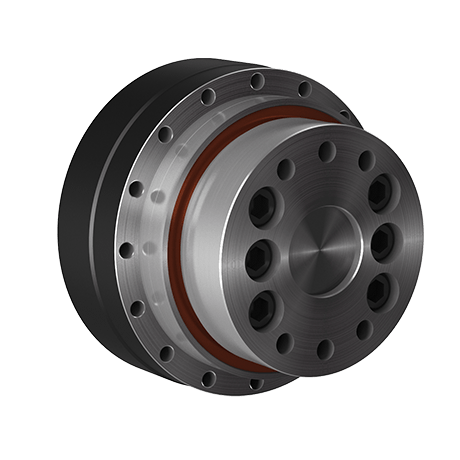

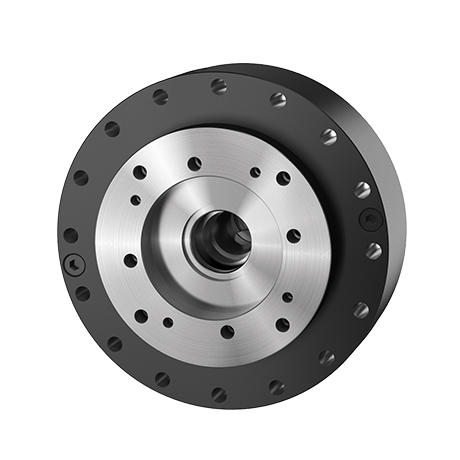

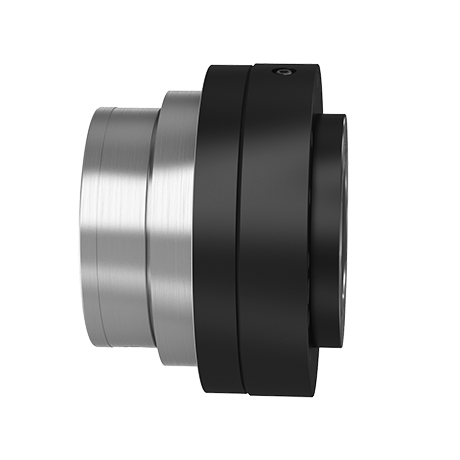

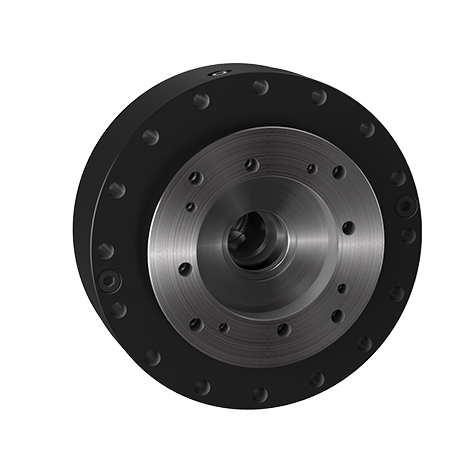

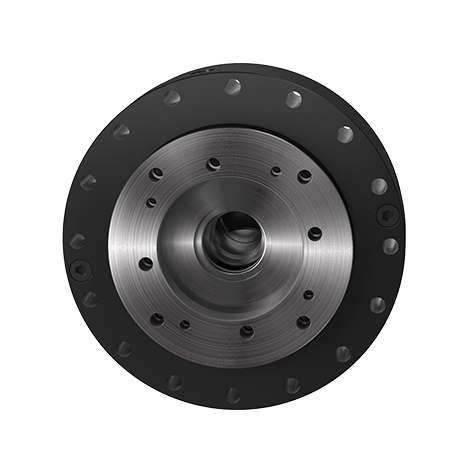

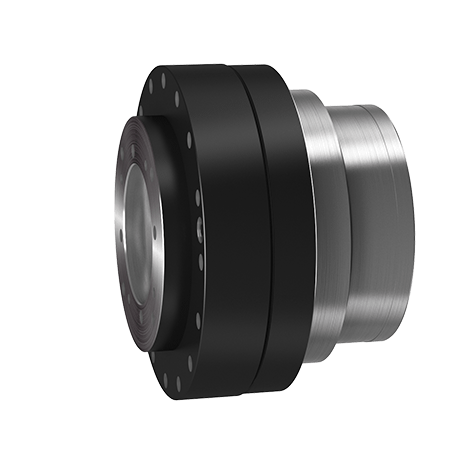

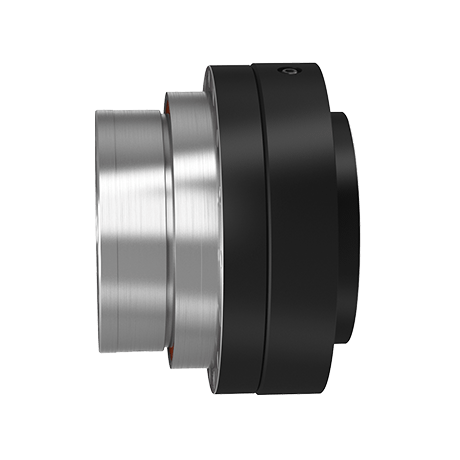

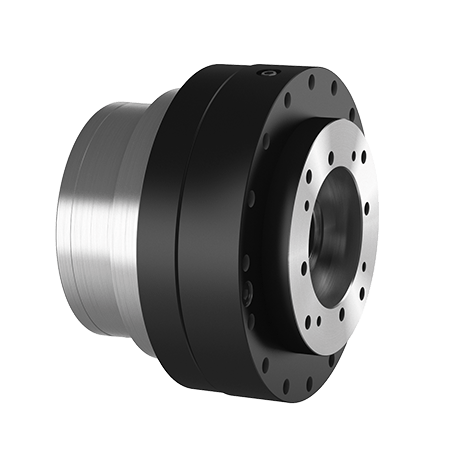

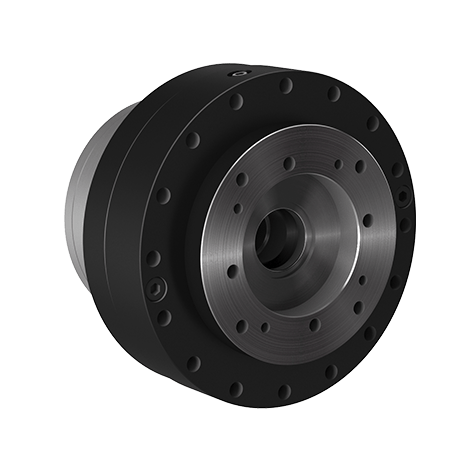

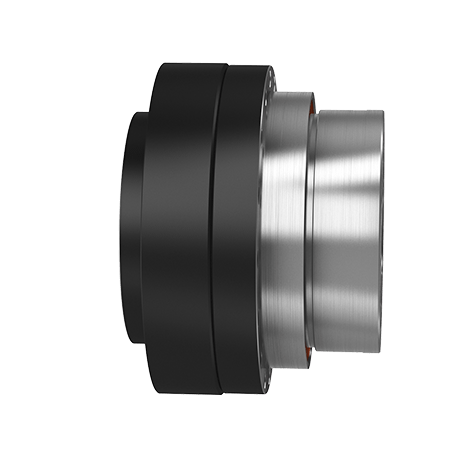

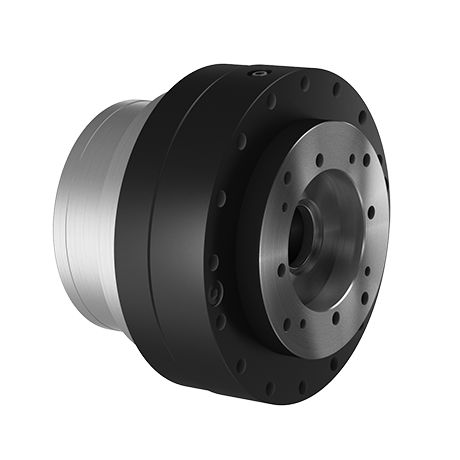

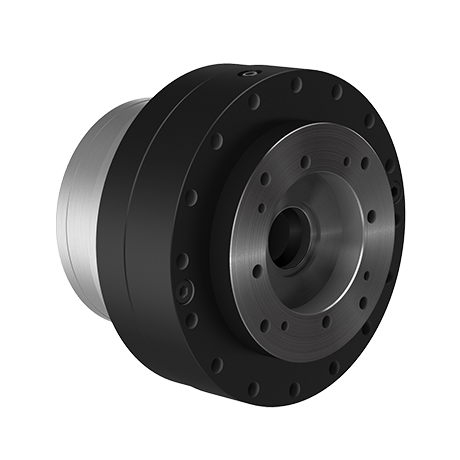

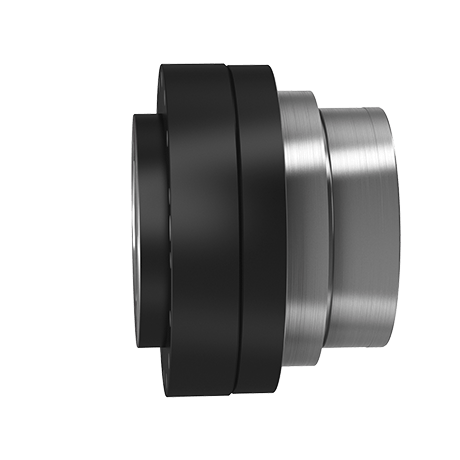

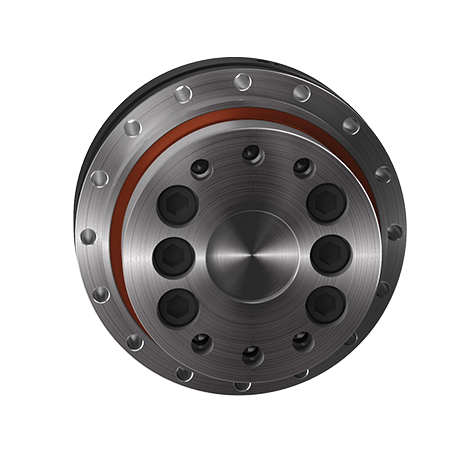

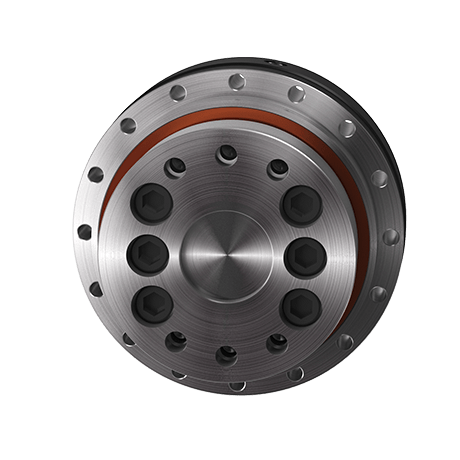

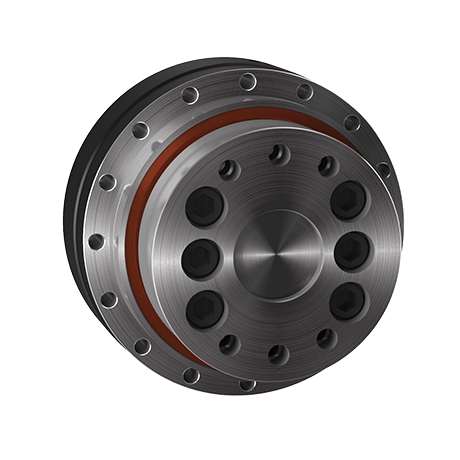

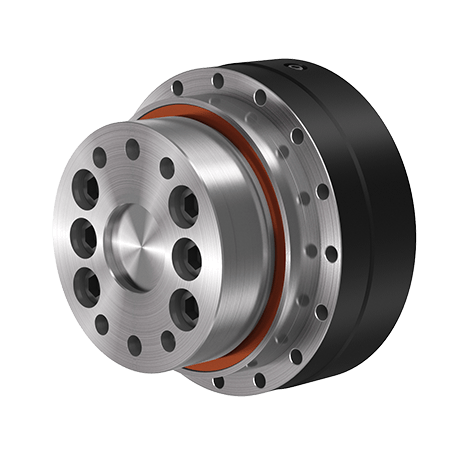

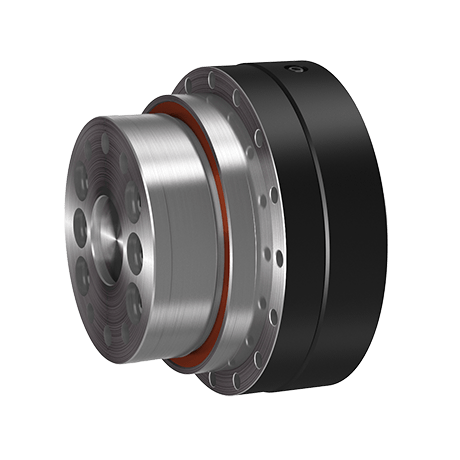

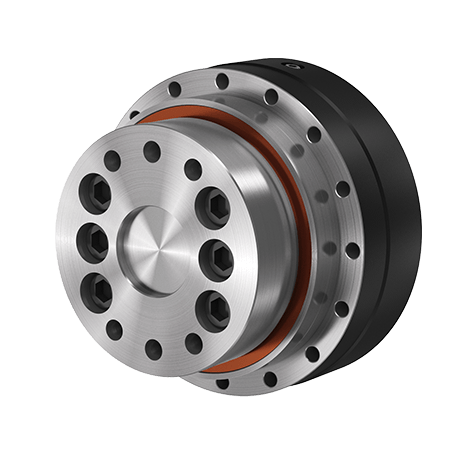

齿轮箱RA-C

机床刀库用齿轮箱（轴回转型）

是将精密减速机以针对方便机床厂商使用为前提而改良后的齿轮箱。高精度输出，外壳可旋转，使其在ATC刀库、ATC臂、APC 刀塔部位被广泛采用。在上述用途以外也和RD系列一样作为精密减速机齿轮箱来应用。

Product Features

  • 紧凑化
  • 外壳可回转
  • 背隙在1分以内
  • 空程在1分以内
  • 主轴承内置
  • 附带对应各公司的伺服电机安装连接件
  • 已装入润滑脂

Application

Spec Information

Model
RA-20EC
RA-20EC
RA-20EC
RA-20EC
RA-20EC
RA-40EC
RA-40EC
RA-40EC
RA-40EC
RA-80EC
RA-80EC
RA-80EC
RA-80EC
RA-160EC
RA-160EC
RA-160EC
RA-160EC
RA-160EC
Discrimination1

 Series

 Unit Type

 Series Symbol

 Model

 Motor Series

 w number

(w)

 w number

(kw)

 Type

 Ratio

 Actual Ratio

 Rated Torque

（N・m）

 Allowable Scceleration/Deceleration Torque

（N・m）

 Momentary Maximum Allowable Torque

（N・m）

 Dimension α1

(mm)

 Dimension α1

(mm)

 Dimension Din

(mm)

 Input Shaft Rated Moment

（N・m）

 Input Shaft Allowable Moment

（N・m）

 Dimensionβ

(mm)

 Rated Output Speed

（r.p.m.）

 Rated life

（hr）

 Allowable Output Speed

（r.p.m.）

 Allowable Input Speed

（r.p.m.）

 Backlash

(arc.min.)

 Lost Motion

(arc.min.)

 Torsional Regidity

(Nm/arc.min.)

 Moment Rejidity

(Nm/arc.min.)

 Start-up Effciency

(%)

 Moment of Inertia

(kg・m^2)

 Mass

(kg)

 Allowable Moment 1

(N・m)

 Allowance Thrust 1

(N)

 Allowable Moment 2

(N・m)

 Allowance Thrust 2

(N)

 Output Rotational Speed 1

(min-1)

 Output Torque 1

(N・m)

 Output Rotational Speed 2

(min-1)

 Output Torque 2

(N・m)

 Brake Holding Torque

(N・m)

 Reduced Value Of The Inertia Moment For The Input Shaft

(kgm2)

 Capacity

 Part Number

 Quantity

 Packaging Type

 Capacity

 Part Number

 Quantity

 Packaging Type

 Maximum allowable load (reference values)

(kg)

 Maximum center of gravity height

(mm)

 Maximum tilt angle

(deg)

 Reduction ratio (Rotary axis)

 Reduction ratio (Tilt axis)

 Allowable startup/stop torque (Rotary axis)

(Nm)

 Allowable startup/stop torque (Tilt axis)

(Nm)

 Rotary axis allowable output speed (Operation Example)

（r.p.m.）

 Tilt axis allowable output speed (Operation Example)

（r.p.m.）

 Backlash・Lost motion (Rotary axis)

(arc.min.)

 Backlash・Lost motion (Tilt axis)

(arc.min.)

 Moment of inertia I (I=GD2/4) motor input conversion (Rotary axis)

(kg-m2)

 Moment of inertia I (I=GD2/4) motor input conversion (Tilt axis)

(kg-m2)

 Motor capacity (reference values) ※1

(w)

 Wheel diameter

(mm)

 Maximum speed ※1

(m/min)

 Loading capacity/wheel

(kgf)

 Loading load/4 wheels AGV (reference values) ※1

(kgf)

0.375 81 81 167 412 15 6,000 less than 1 less than 1 49 372 0.00000607 9.5 882

0.375 105 105 167 412 15 6,000 less than 1 less than 1 49 372 0.00000432 9.5 882

0.375 121 121 167 412 15 6,000 less than 1 less than 1 49 372 0.00000356 9.5 882

0.375 141 141 167 412 15 6,000 less than 1 less than 1 49 372 0.00000288 9.5 882

0.375 161 161 167 412 15 6,000 less than 1 less than 1 49 372 0.00000239 9.5 882

0.924 81 81 412 1,029 15 6,000 less than 1 less than 1 108 931 0.000022 20 1,666

0.924 105 105 412 1,029 15 6,000 less than 1 less than 1 108 931 0.0000163 20 1,666

0.924 121 121 412 1,029 15 6,000 less than 1 less than 1 108 931 0.0000137 20 1,666

0.924 153 153 412 1,029 15 6,000 less than 1 less than 1 108 931 0.0000101 20 1,666

1.758 81 81 784 1,960 15 6,000 less than 1 less than 1 196 1,176 0.00006 27 2,156

1.758 101 101 784 1,960 15 6,000 less than 1 less than 1 196 1,176 0.0000482 27 2,156

1.758 121 121 784 1,960 15 6,000 less than 1 less than 1 196 1,176 0.0000396 27 2,156

1.758 153 153 784 1,960 15 6,000 less than 1 less than 1 196 1,176 0.0000298 27 2,156

3.517 81 81 1,568 3,920 15 6,000 less than 1 less than 1 392 2,940 0.000177 59 3,920

3.517 101 101 1,568 3,920 15 6,000 less than 1 less than 1 392 2,940 0.00014 59 3,920

3.517 129 129 1,568 3,920 15 6,000 less than 1 less than 1 392 2,940 0.000106 59 3,920

3.517 145 145 1,568 3,920 15 6,000 less than 1 less than 1 392 2,940 0.000087 59 3,920

3.517 171 171 1,568 3,920 15 6,000 less than 1 less than 1 392 2,940 0.000074 59 3,920
※1 Subject to change depending on the operating conditions
