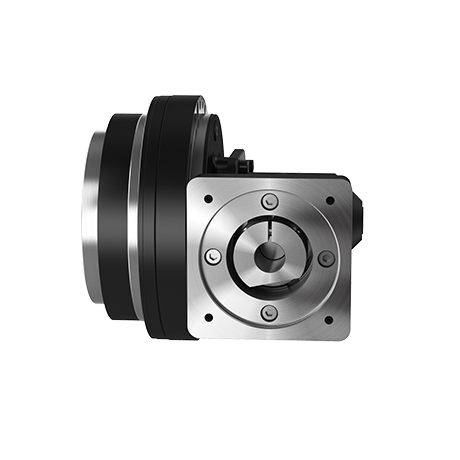

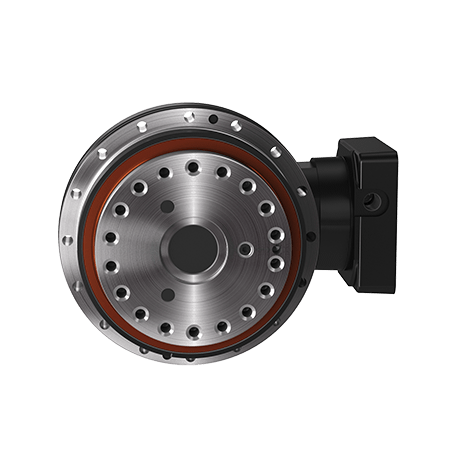

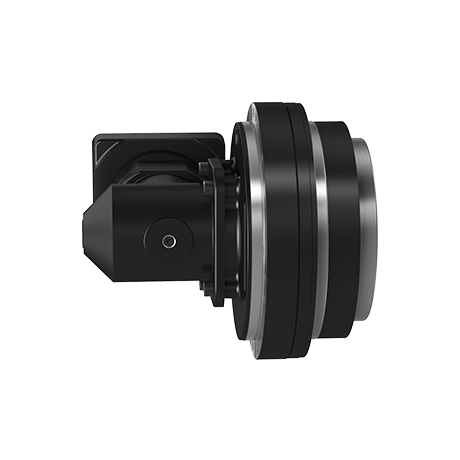

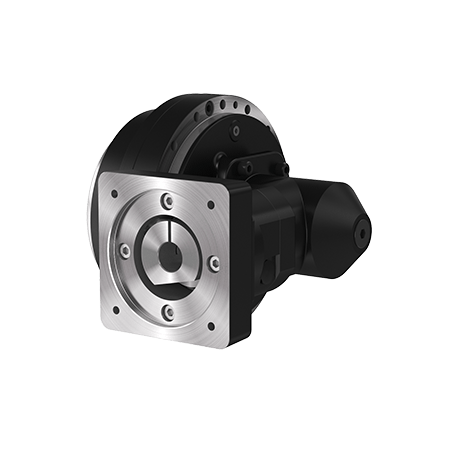

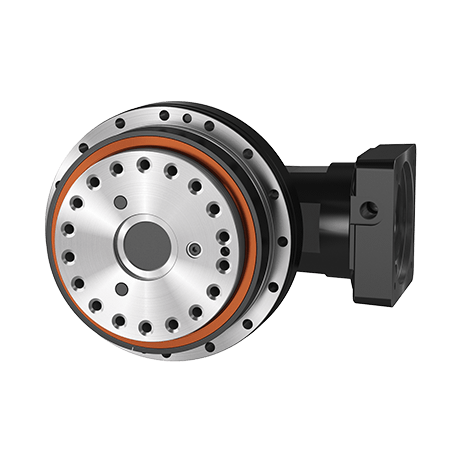

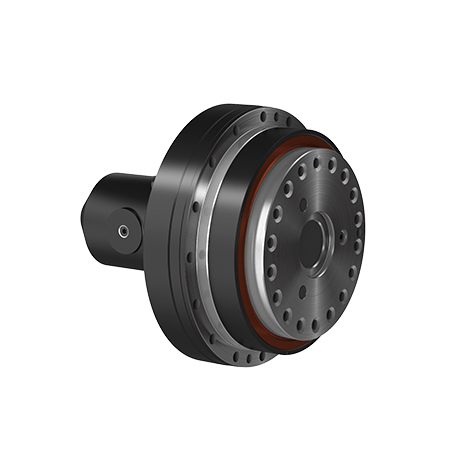

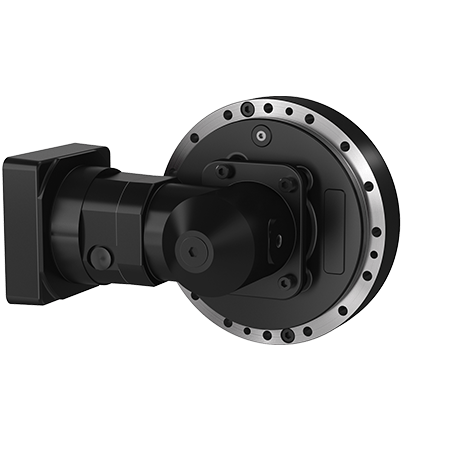

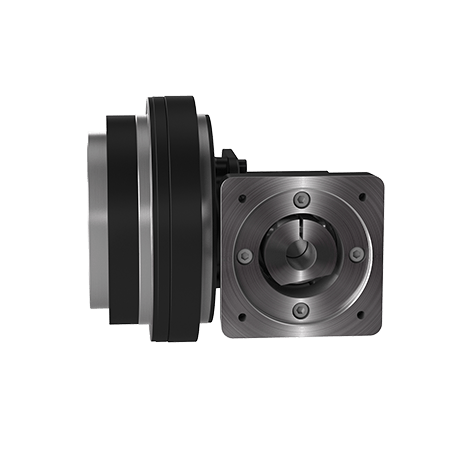

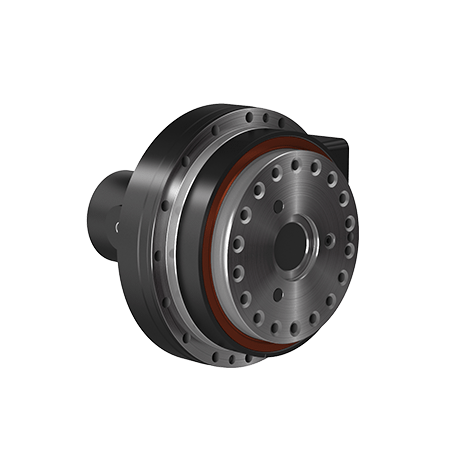

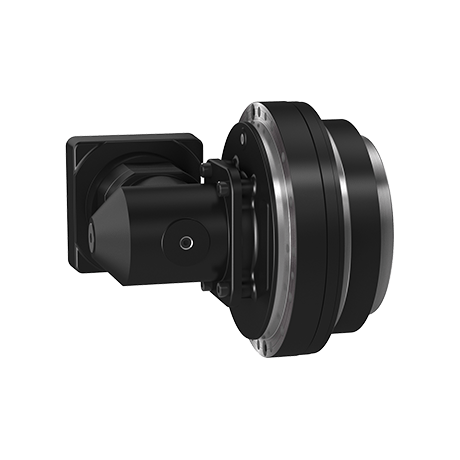

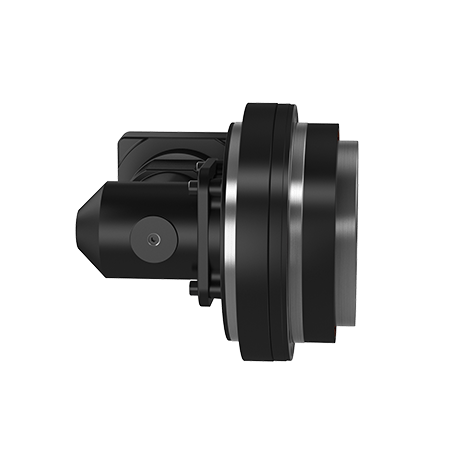

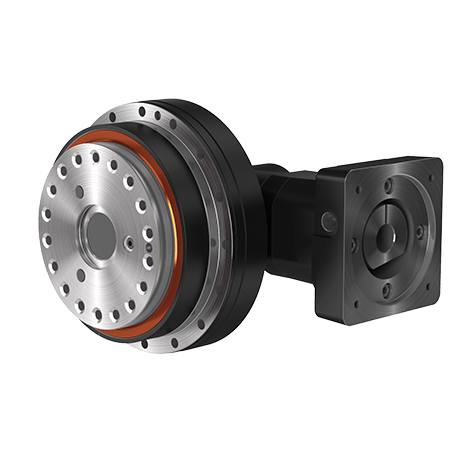

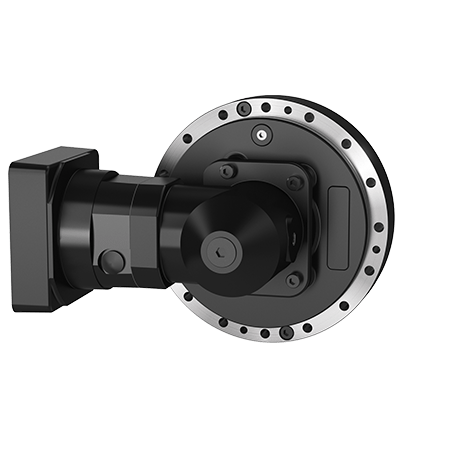

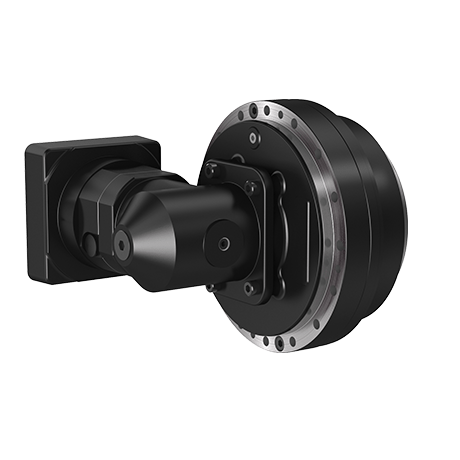

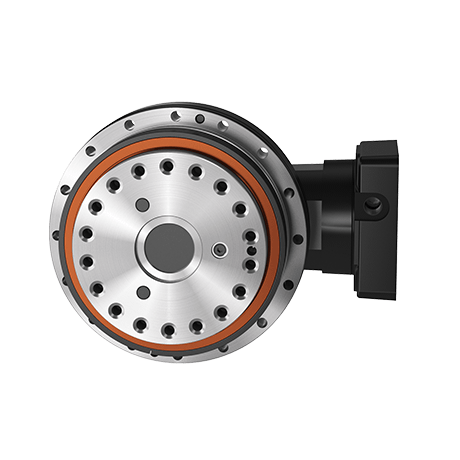

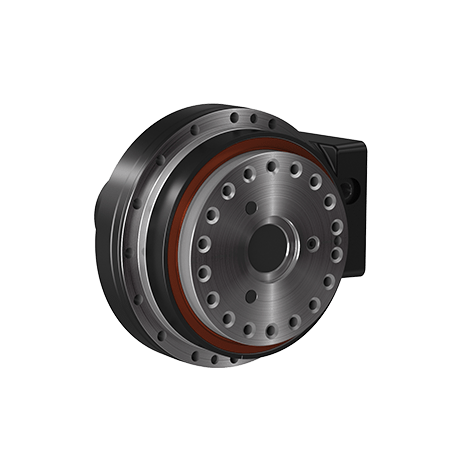

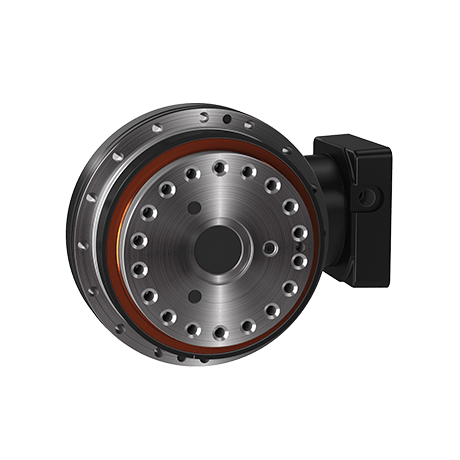

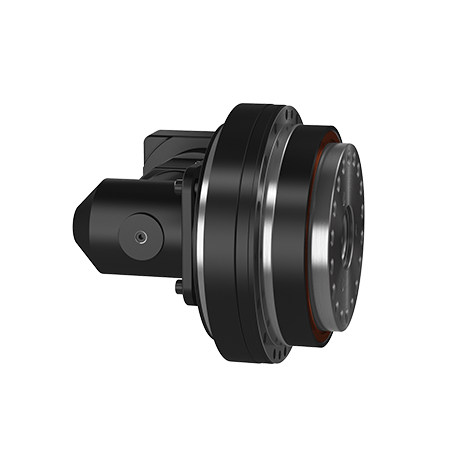

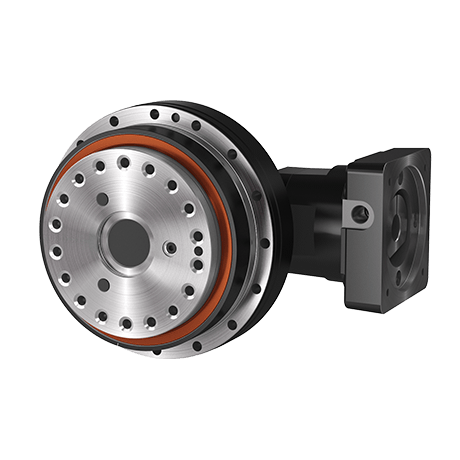

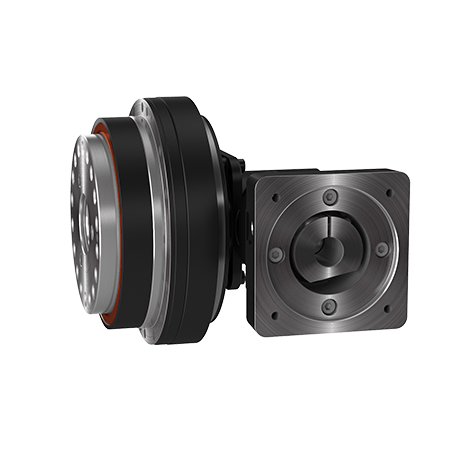

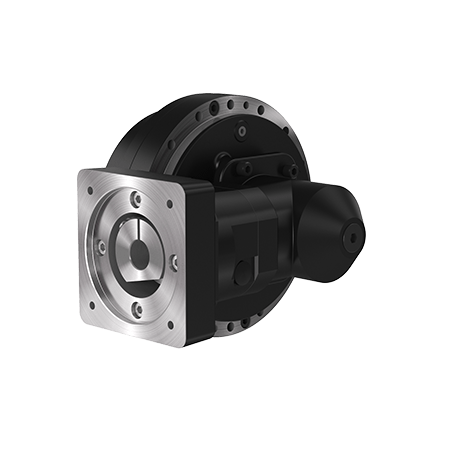

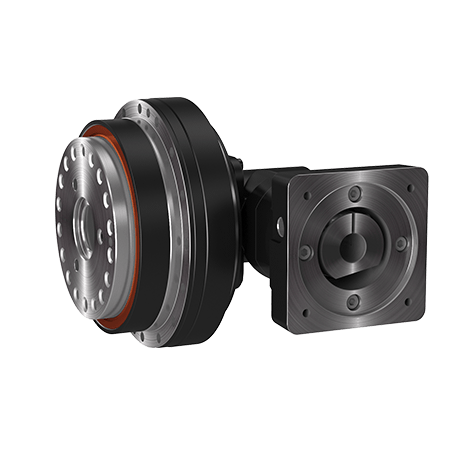

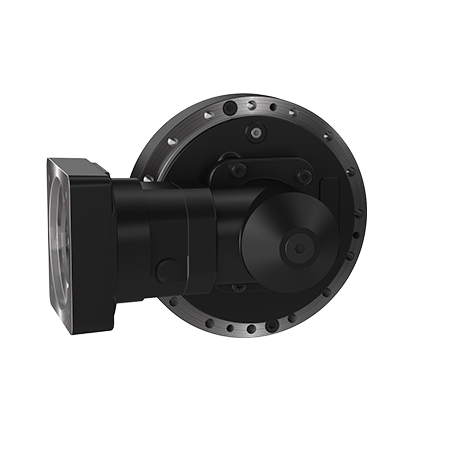

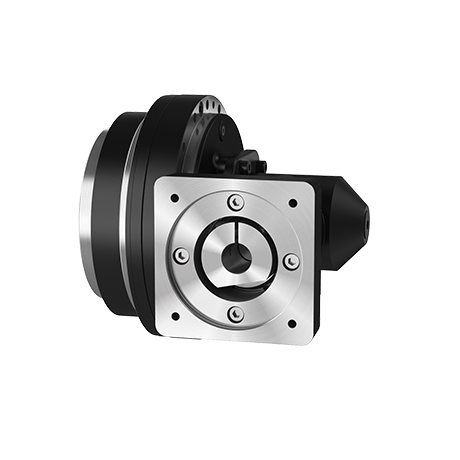

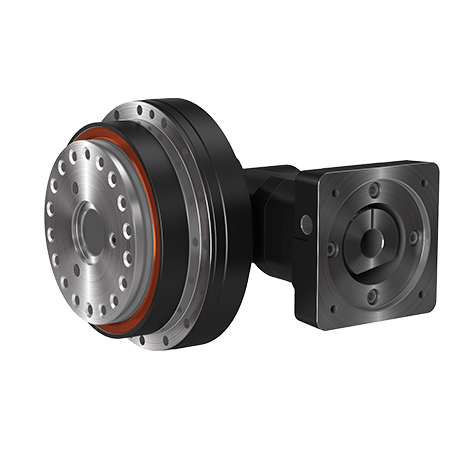

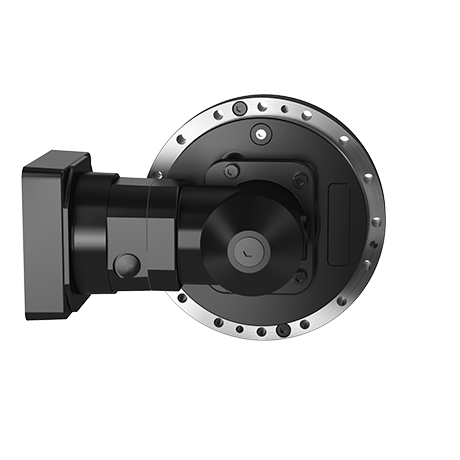

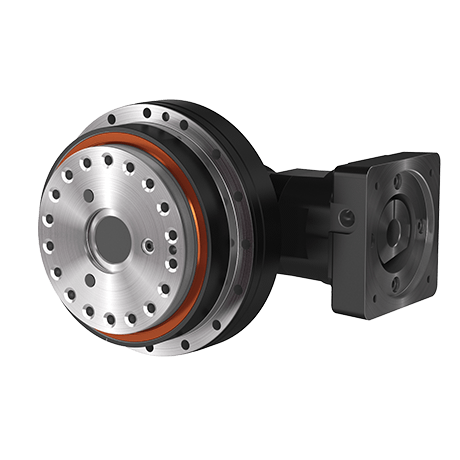

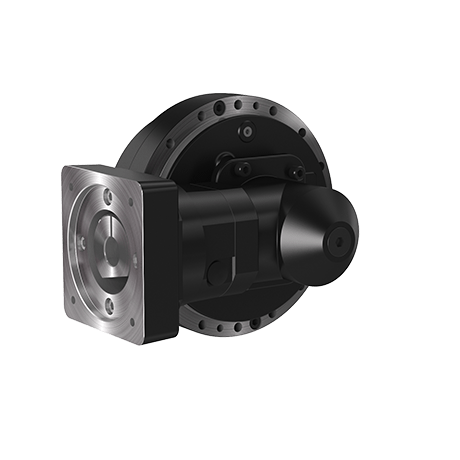

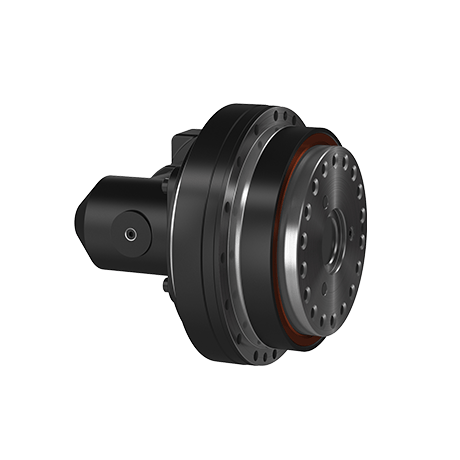

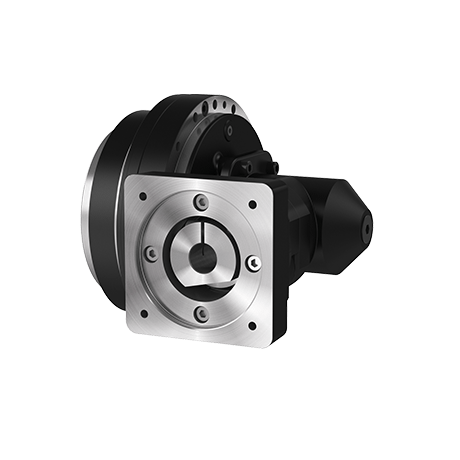

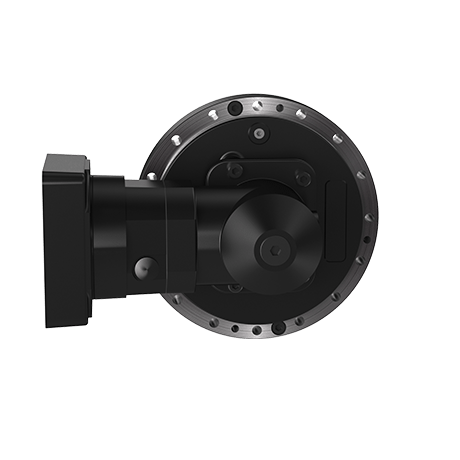

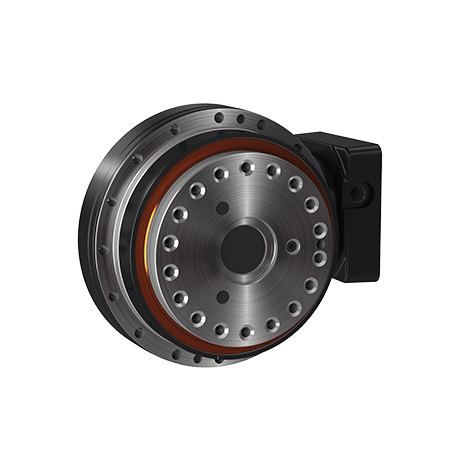

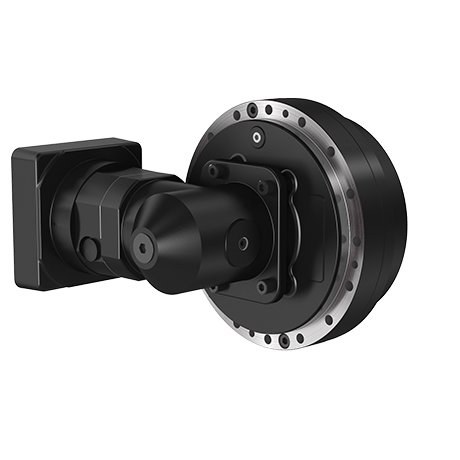

齿轮箱RDR-E

直交输入型精密减速机的齿轮箱。中实系列。

作为RD2系列全新产品的直交输入型齿轮箱。由于是直交输入型，具有使搭载装置轻薄化，在狭窄的空间也可设置的优点。特别是使用在转动台时可以在控制高度的同时确定高精度位置，从而实现底床化。

Product Features

  • 直交输入
  • 背隙在1.5分以内
  • 空程在1.5分以内
  • 主轴承内置
  • 附带对应各公司的伺服电机安装连接件
  • 已装入润滑脂

Application

Spec Information

Model
RDR-006E
RDR-006E
RDR-006E
RDR-006E
RDR-006E
RDR-020E
RDR-020E
RDR-020E
RDR-020E
RDR-020E
RDR-020E
RDR-040E
RDR-040E
RDR-040E
RDR-040E
RDR-040E
RDR-040E
RDR-080E
RDR-080E
RDR-080E
RDR-080E
RDR-080E
RDR-080E
RDR-160E
RDR-160E
RDR-160E
RDR-160E
RDR-160E
RDR-160E
RDR-320E
RDR-320E
RDR-320E
RDR-320E
RDR-320E
RDR-320E
Discrimination1

 Series

 Unit Type

 Series Symbol

 Model

 Motor Series

 w number

(w)

 w number

(kw)

 Type

 Ratio

 Actual Ratio

 Rated Torque

（N・m）

 Allowable Scceleration/Deceleration Torque

（N・m）

 Momentary Maximum Allowable Torque

（N・m）

 Dimension α1

(mm)

 Dimension α1

(mm)

 Dimension Din

(mm)

 Input Shaft Rated Moment

（N・m）

 Input Shaft Allowable Moment

（N・m）

 Dimensionβ

(mm)

 Rated Output Speed

（r.p.m.）

 Rated life

（hr）

 Allowable Output Speed

（r.p.m.）

 Allowable Input Speed

（r.p.m.）

 Backlash

(arc.min.)

 Lost Motion

(arc.min.)

 Torsional Regidity

(Nm/arc.min.)

 Moment Rejidity

(Nm/arc.min.)

 Start-up Effciency

(%)

 Moment of Inertia

(kg・m^2)

 Mass

(kg)

 Allowable Moment 1

(N・m)

 Allowance Thrust 1

(N)

 Allowable Moment 2

(N・m)

 Allowance Thrust 2

(N)

 Output Rotational Speed 1

(min-1)

 Output Torque 1

(N・m)

 Output Rotational Speed 2

(min-1)

 Output Torque 2

(N・m)

 Brake Holding Torque

(N・m)

 Reduced Value Of The Inertia Moment For The Input Shaft

(kgm2)

 Capacity

 Part Number

 Quantity

 Packaging Type

 Capacity

 Part Number

 Quantity

 Packaging Type

 Maximum allowable load (reference values)

(kg)

 Maximum center of gravity height

(mm)

 Maximum tilt angle

(deg)

 Reduction ratio (Rotary axis)

 Reduction ratio (Tilt axis)

 Allowable startup/stop torque (Rotary axis)

(Nm)

 Allowable startup/stop torque (Tilt axis)

(Nm)

 Rotary axis allowable output speed (Operation Example)

（r.p.m.）

 Tilt axis allowable output speed (Operation Example)

（r.p.m.）

 Backlash・Lost motion (Rotary axis)

(arc.min.)

 Backlash・Lost motion (Tilt axis)

(arc.min.)

 Moment of inertia I (I=GD2/4) motor input conversion (Rotary axis)

(kg-m2)

 Moment of inertia I (I=GD2/4) motor input conversion (Tilt axis)

(kg-m2)

 Motor capacity (reference values) ※1

(w)

 Wheel diameter

(mm)

 Maximum speed ※1

(m/min)

 Loading capacity/wheel

(kgf)

 Loading load/4 wheels AGV (reference values) ※1

(kgf)

0.26 31 31 58 117 30 6,000 100 3,500 less than 2 less than 2 20 117 196

0.26 43 43 58 117 30 6,000 81 3,500 less than 2 less than 2 20 117 196

0.26 54 54 58 117 30 6,000 65 3,500 less than 2 less than 2 20 117 196

0.26 79 79 58 117 30 6,000 44 3,500 less than 2 less than 2 20 117 196

0.26 103 103 58 117 30 6,000 34 3,500 less than 2 less than 2 20 117 196

0.242 41 41 108 271 15 6,000 75 3,500 less than 1.5 less than 1.5 49 372 882

0.339 57 57 151 378 15 6,000 61 3,500 less than 1.5 less than 1.5 49 372 882

0.375 81 81 167 412 15 6,000 43 3,500 less than 1.5 less than 1.5 49 372 882

0.375 105 105 167 412 15 6,000 33 3,500 less than 1.5 less than 1.5 49 372 882

0.375 121 121 167 412 15 6,000 29 3,500 less than 1.5 less than 1.5 49 372 882

0.375 161 161 167 412 15 6,000 22 3,500 less than 1.5 less than 1.5 49 372 882

0.897 41 41 400 1,000 15 6,000 70 3,000 less than 1.5 less than 1.5 108 931 1,666

0.924 57 57 412 1,029 15 6,000 53 3,000 less than 1.5 less than 1.5 108 931 1,666

0.924 81 81 412 1,029 15 6,000 37 3,000 less than 1.5 less than 1.5 108 931 1,666

0.924 105 105 412 1,029 15 6,000 29 3,000 less than 1.5 less than 1.5 108 931 1,666

0.924 121 121 412 1,029 15 6,000 25 3,000 less than 1.5 less than 1.5 108 931 1,666

0.924 153 153 412 1,029 15 6,000 20 3,000 less than 1.5 less than 1.5 108 931 1,666

0.897 41 41 400 1,000 15 6,000 70 3,000 less than 1.5 less than 1.5 196 1,176 2,156

1.247 57 57 556 1,390 15 6,000 53 3,000 less than 1.5 less than 1.5 196 1,176 2,156

1.758 81 81 784 1,960 15 6,000 37 3,000 less than 1.5 less than 1.5 196 1,176 2,156

1.758 101 101 784 1,960 15 6,000 30 3,000 less than 1.5 less than 1.5 196 1,176 2,156

1.758 121 121 784 1,960 15 6,000 25 3,000 less than 1.5 less than 1.5 196 1,176 2,156

1.758 153 153 784 1,960 15 6,000 20 3,000 less than 1.5 less than 1.5 196 1,176 2,156

3.517 66 66 1,568 3,920 15 6,000 30 2,000 less than 1.5 less than 1.5 392 2,940 3,920

3.517 81 81 1,568 3,920 15 6,000 25 2,000 less than 1.5 less than 1.5 392 2,940 3,920

3.517 101 101 1,568 3,920 15 6,000 20 2,000 less than 1.5 less than 1.5 392 2,940 3,920

3.517 121 121 1,568 3,920 15 6,000 17 2,000 less than 1.5 less than 1.5 392 2,940 3,920

3.517 145 145 1,568 3,920 15 6,000 14 2,000 less than 1.5 less than 1.5 392 2,940 3,920

3.517 171 171 1,568 3,920 15 6,000 12 2,000 less than 1.5 less than 1.5 392 2,940 3,920

4.037 66 66 1,800 4,503 15 6,000 30 2,000 less than 1.5 less than 1.5 980 4,900 7,056

4.954 81 81 2,209 5,527 15 6,000 25 2,000 less than 1.5 less than 1.5 980 4,900 7,056

6.179 101 101 2,755 6,892 15 6,000 20 2,000 less than 1.5 less than 1.5 980 4,900 7,056

7.034 121 121 3,136 7,840 15 6,000 17 2,000 less than 1.5 less than 1.5 980 4,900 7,056

7.034 141 141 3,136 7,840 15 6,000 14 2,000 less than 1.5 less than 1.5 980 4,900 7,056

7.034 185 185 3,136 7,840 15 6,000 11 2,000 less than 1.5 less than 1.5 980 4,900 7,056
※1 Subject to change depending on the operating conditions
